Here is what you need to know

PRE-ORDER for 30th NOV - NOW SOLD OUT

NEXT BATCH DUE 27th DEC
SPECIAL PRICE IF YOU PRE-ORDER IN OCTOBER: $3899

Key Features

ALL IN ONE COMPLETE HOME GYM

One machine, so much power. For starters, the Armortech F70 MAX Functional Trainer is designed to be a compact & complete home gym with three core components. The F70 MAX is essentially an All In One - commercial Functional Trainer, Half Rack and Smith Machine.

Combined together these components provide an unlimited number & variety of exercises to target each muscle group. No more need for rooms filled with equipment from one end to the other.

FUNCTIONAL TRAINER COMPONENT

The F70 MAX Functional Trainer component is built tough, to be able to handle the max load of the weight stacks. Built with Commercial Grade Aircraft Cables and Aluminium Pulleys, that stand up to the load of 100KG Steel weight stacks on each side. Ratio: (2 to 1). Simply adjust the magnetic pin, and select a desired weight for the exercise - perfect for Supersets or Dropsets.

Another great feature is the super-easy and fast, pop-pin adjustment system with handle - to select a desired height. The Functional Trainer is compatible with a range of 'cable attachments' for almost every exercise you could ever want.

Included cable attachments: 2x Velco Handles, Lat Pulldown Bar, Straight Bar.

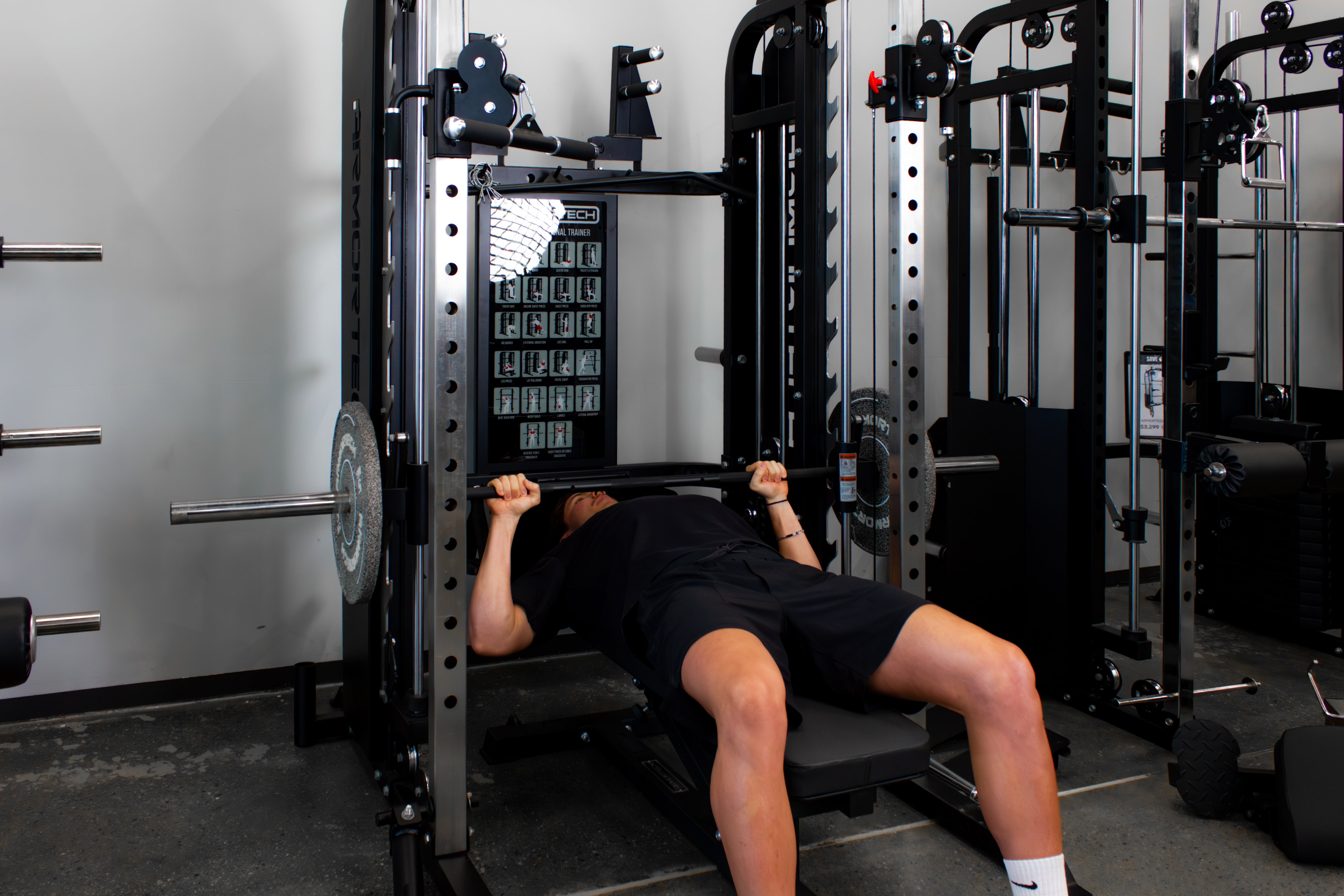

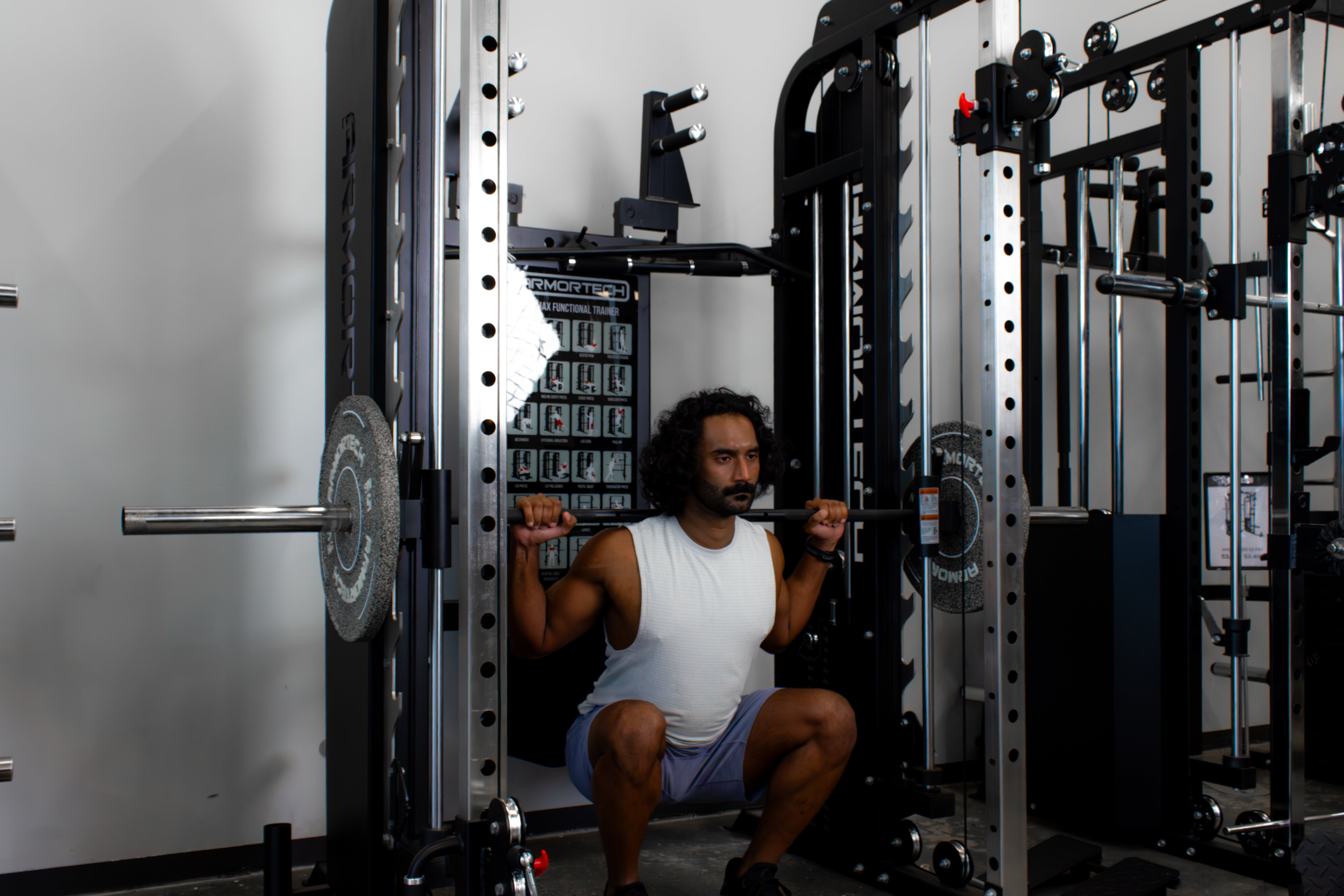

SMITH MACHINE COMPONENT

Smith bar weight & diameter: 25KG and 28mm diameter

The F70 MAX smith machine provides a STRONG and SAFE workout, with top of the range: 25mm self-alligning linear bearings and the GunRack racking system. The GunRack makes it easier to rack the bar under heavy load compared to post-rack units, which allows you to push your max weight. The available smith bar sleeve space is 41.5cm on each side (Olympic plates only).

The smith machine highest racking point is 176cm, suitable for users that are 6ft6" (196cm).

Leg Press Plate is included with the F70 Max and is easily attached to the Smith Bar with two pins. Simply set the safety plates on the GunRack, and slide under on a bench or floor, to perform the Vertical Leg Press exercise.

HALF RACK COMPONENT

The F70 MAX half rack uprights are full commercial: 70x50 (3mm thick).

The Half Rack is an optional component, so if you have a barbell and plates already - you can now use it with the F70 Max for all the compound exercises. J-Hooks & Spotter Arms are included. The uprights feature laser cut holes & numbering for easier adjustments and at the top you have the multi grip pull up bar, powder coated in black.

Extras: Dip Handles, Foam Pad attachment for Lat, Foot Plate attachment for Rows, Landmine Rotating attachment, 2x Band Pegs

QUALITY FINISH AND EASY STORAGE

The F70 MAX offers 4x Plate storage pegs for weight storage as well as 2x Bar holders (Olympic bar).

Easily store the cable attachments with the in-built hooks inside the machine.

Quality finish and sleek design, with a Exercise Chart and Steel Armortech Covers

SHIPPED IN A CRATE TO PREVENT TRANSIT DAMAGE & FAST DELIVERY

This item is oversize / bulky in a crate and ships separately. It cannot be sent using an express courier. FLEX allows you to track your order from the time you place it to the time it hits your door. Order today, track today.



SKU 4079
Barcode # 2000000001470
Brand Armortech
Shipping Weight 530.0000kg
Shipping Width 1.300m
Shipping Height 0.700m
Shipping Length 2.200m
Shipping Cubic 2.002000000m3
Assembled Length 1.550m
Assembled Height 2.200m
Assembled Width 2.200m

Armortech Functional Trainer Range Comparison Table

F10
F30
F40
F70 Max
F100
Half rack
Functional trainer
Smith machine
Weight of machine 180kg 220kg 360kg 488kg 438kg
Functional trainer component
Weight stack Plate load, pegs Plate load, pegs Plastic, 68kg each side Steel, 100kg each side Steel, 100kg + plate load pegs (up to 200kg max), each side
Pulleys Aluminium Plastic Plastic Aluminium Aluminium
Loadable ft sleeve/peg space 21cm/21cm (each side) 21cm/21cm (each side) N/A N/A 100kg stack + 21cm/21cm (each side)
Smith machine component
Smith machine type Post rack Post rack Post rack Gun rack Gun rack
Smith bar weight 16kg 15kg 15kg 25kg 20kg
Smith bar diameter 25mm 28mm 28mm 28mm 32mm
Smith bar loadable sleeve space 30cm for oly 26cm for std (each side) 21cm oly or std (each side) 21cm oly or std (each side) 41.5cm oly plate only (each side) 39cm oly plate only (each side)
Smith bar max height & max rack 165cm/162cm 187cm/182cm 187cm/182cm 181cm/176cm 191cm/171cm
Half rack component
Half rack uprights 60x60mm 50x50mm 50x50mm 70x50mm 50x50mm
Multi grip pull up bar Steel, multigrip Foam curved Foam curved Steel, multigrip Steel, multigrip
Half rack max j-hook height 167cm 168.5cm 168.5cm 155cm 168.5cm
J-hook & spotter included
Storage
Plate storage 6x storage pegs 2x storage pegs 2x storage pegs 4x storage pegs 4x storage pegs
Bar storage 2x bar 1x bar holder 1x bar holder 2x bar holder 1x bar holder
Extra's
Olympics or standard Both Both Both Olympics Olympics
Leg press plate
(optional)
(optional)
included
optional (for new batch)
Dip handles
optional
included
included
included
included
Landmine attachment
included
included
included
included
Exercise chart
included
Assembled dimensions
Length 164cm 158cm 158cm 155cm 152cm
Width 198cm 188cm 188cm 220cm 220cm
Height 220cm 222cm 222cm 222cm 222cm
